Tug Ralph Brocklebank, Proposed Re-arrangement of Passenger Accommodation, Main Deck

Description

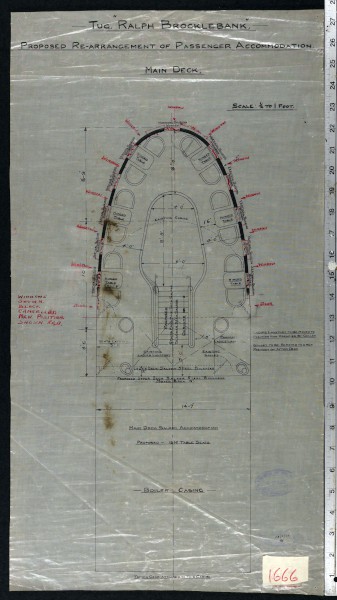

boat building drawing/ Daniel Adamson Proposed changes to the main deck saloon accomodation from the present 8 side seats to a proposed 12 table seats Highlighted in red are changes to the window layout from the original proposal.

Reference code

D5295.06

Extent & medium

690x380
tracing coloured
image d5295-6m
