Mersey Flat 'Bedale'. Sheet 3 plus copy

Description

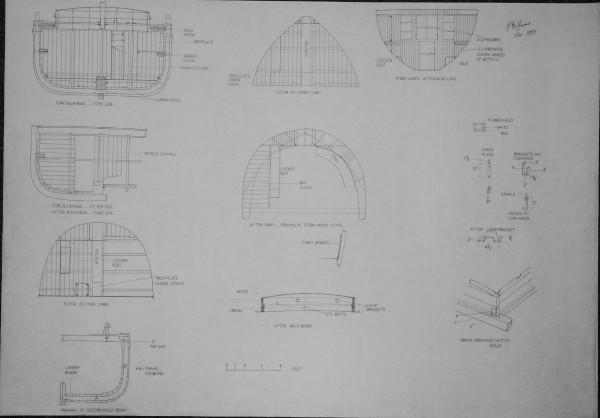

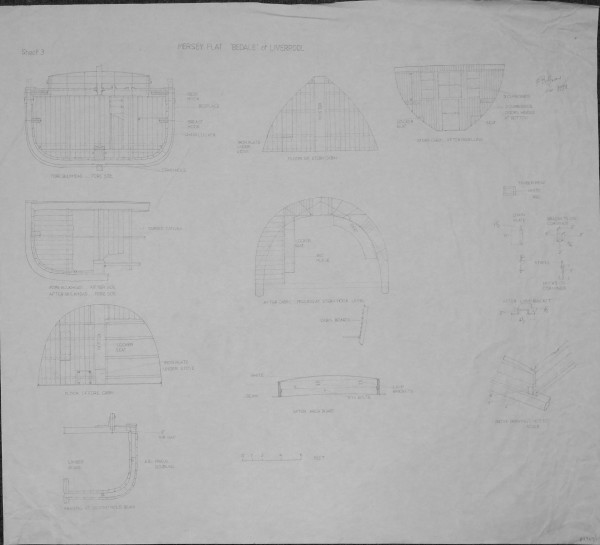

Boat Building Drawing. Cross section, stern framing, coaming, bracket details, cabin layout.

Date

1972

Reference code

D2749.03

Extent & medium

790mm x 710mm
1/2" = 1ft
Paper Print
