EP. Proposed general arrangement of dry dock pontoon gate, Victoria Arm.

Description

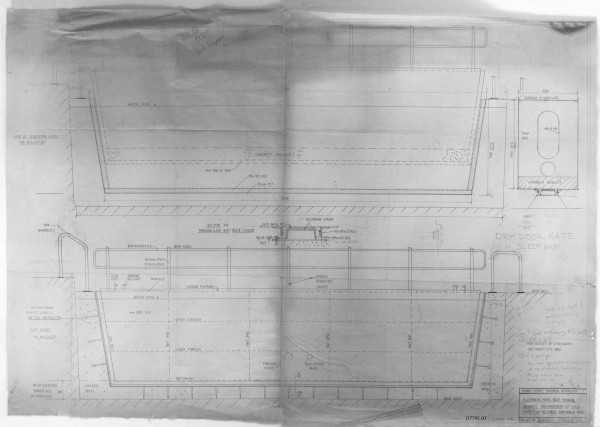

Shropshire Union Canal Boat Museum Engineer's drawing Victoria Arm Dry Dock; proposed general arrangement of dry dock pontoon gate - inner Dock 21/9/1981. Dyeline on paper with pencil annotations. 1250 x 850 mm
